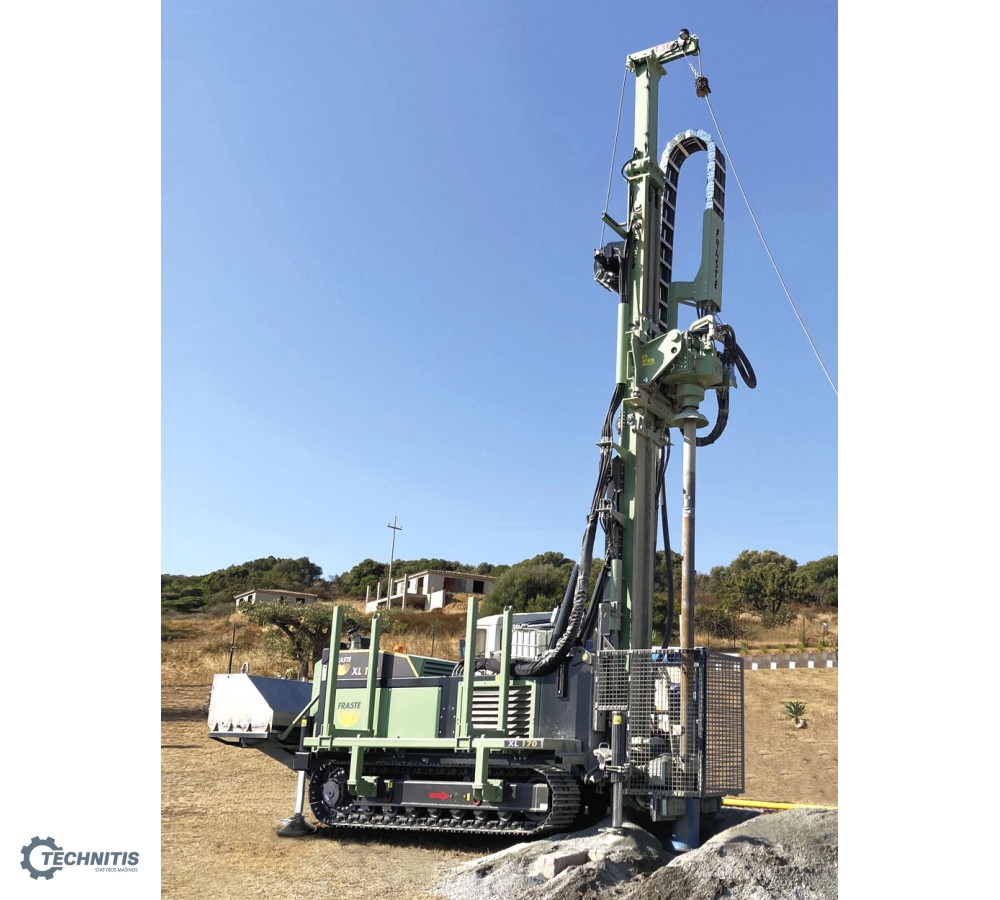

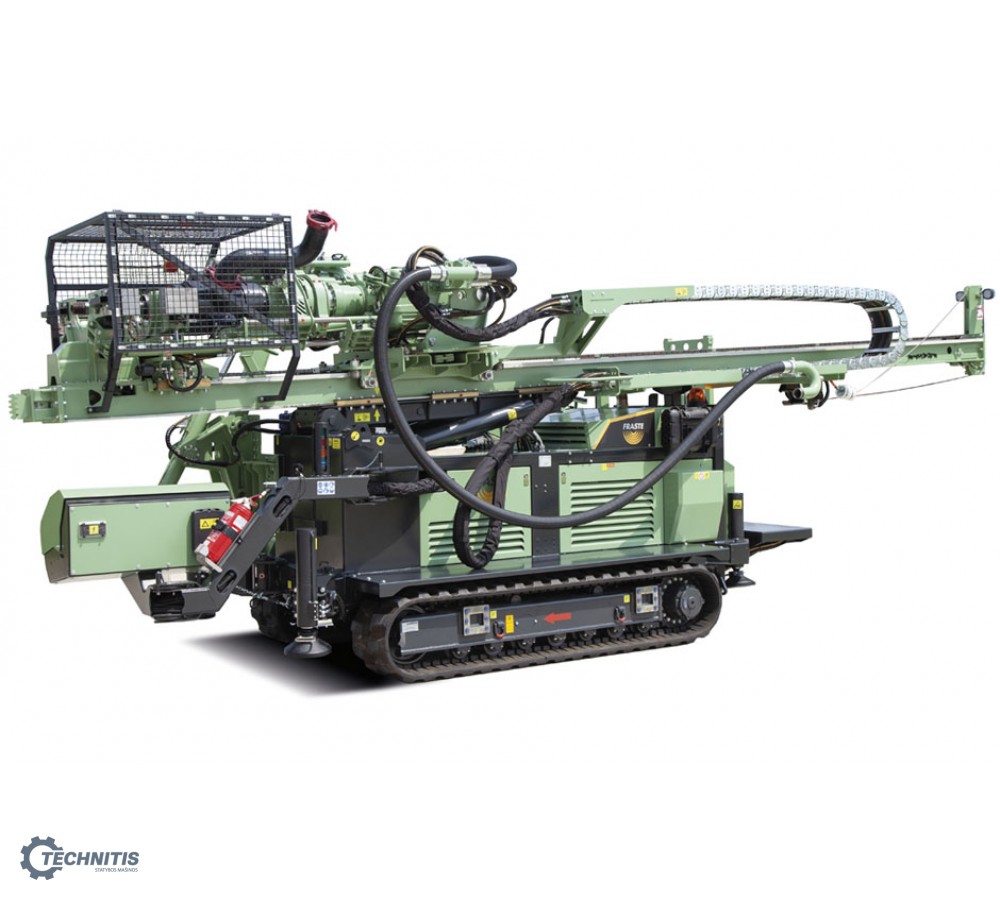

FRASTE Multidrill XL 170 gręžimo įrenginys
FRASTE Multidrill XL 170 gręžimo įrenginys
Atsisiųsti
Aprašymas
Prekės kodas: Multidrill XL 170
Complete, dynamic, multitasking and high quality drilling rig, always ready for different purposes: Geotechnical, Soil Investigation, Coring, Geothermal, Ground Consolidation, Micropiles, Water Well. Properly designed to be fitted with the well-known and tested FRASTE – MANIPULATOR automatic drill pipes loading system. MULTIDRILL XL 170: Sturdy, high construction standards, avant-garde hydraulic system and great performances, to confirm the High-Quality production level. Easy maneuverability and maintenance. Safety and perfect functionality are ensured in accordance with European Machinery Directive and all the rules in the field of safety at work and environmental protection.
Techniniai duomenys
| Maks. sukimosi galvos sūkiai, 1/min | 1000 |
| Griebtuvas, mm | 60-355 |
| Kėlimo jėga, daN | 12000-14000-18000 |
| Maks. sukimosi galvos sukimo momentas, daNm | 1860 |
| Rotacinės galvos eiga, mm | 3700-4000-4500 |
| Stūmimo jėga, daN | 6800 |
| Variklis | CAT C4.4 - Stage V - Tier 4 - 129,4 kw (173,5 Hp) CAT C7.1 - Stage IIIA - Tier 3 - 129 Kw (173 Hp) |
| Svoris, kg | ~12000 |
