FRASTE Multidrill ML T gręžimo įrenginys

Name: FRASTE Multidrill ML T gręžimo įrenginys
SKU: Multidrill ML T
Availability: InStock

Klausti

TadasBarila

tadas.barila@technitis.lt, +370 652 29 404

Atsisiųsti

Aprašymas

Prekės kodas: Multidrill ML T

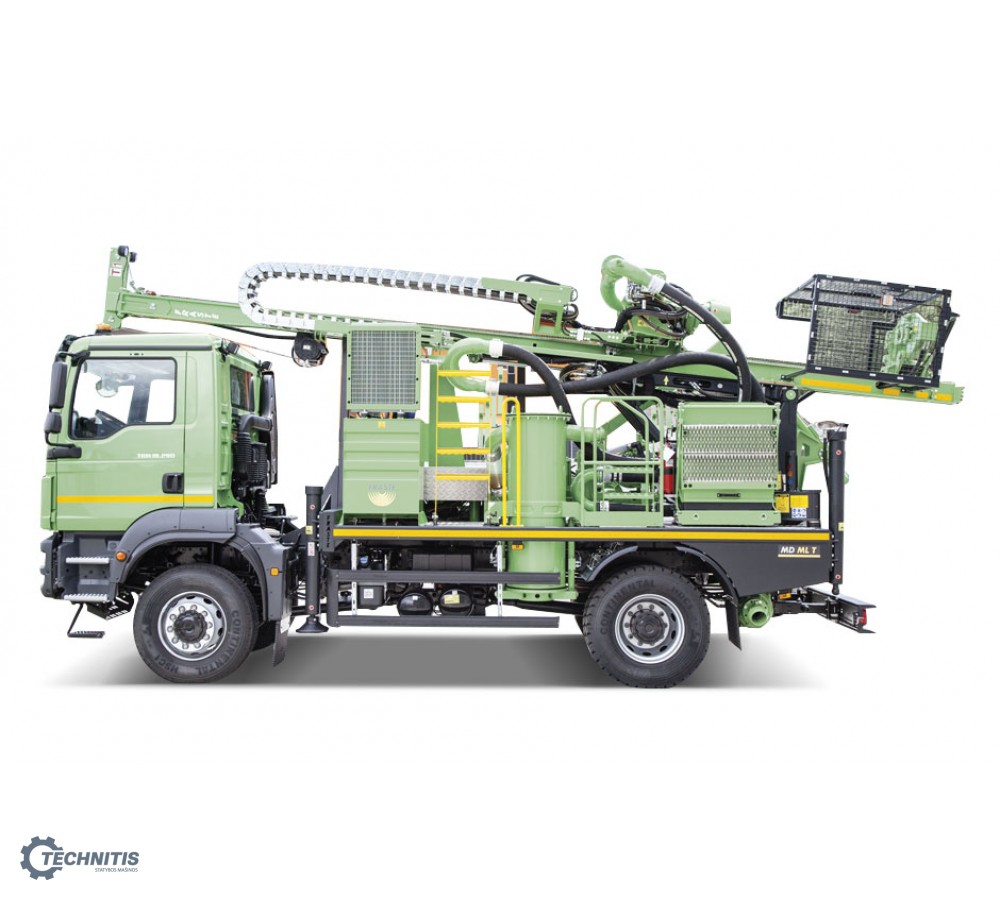

FRASTE MULTIDRILL ML T drilling rig, mounted on 2 axles light and compact truck carrier 4x4 – PTT 14 ton: efficient, fast, great reliability, top productivity rate. All top qualities of FRASTE MULTIDRILL ML, on “T”ruck fitting! FRASTE MULTIDRILL ML T keeps all features of the MULTRILL ML crawler mounted drilling rig: compact size and high performances to allow a large and multipurpose field of application among soil investigation, environmental monitoring and water well drilling. Innovative design, Stage 4 Final engines, first quality components and great care dedicated to the operator safety allow the MULTIDRILL ML T to easily work with all drilling systems : rotary drilling with direct / reverse fluid or air circulation ; DTH hammer ; roto-percussion system ; conventional and wire-lire coring. FRASTE MULTIDRILL ML T can be equipped with a wide range of drilling tools and accessories as the MULTIDRILL ML crawler mounted version, to meet all drilling needs.

Techniniai duomenys

Maks. sukimosi galvos sūkiai, 1/min	1100
Griebtuvas, mm	60-280
Kėlimo jėga, daN	6000
Maks. sukimosi galvos sukimo momentas, daNm	1180
Rotacinės galvos eiga, mm	3500÷4500
Stūmimo jėga, daN	3100
Variklis	KUBOTA V3800 - Stage IIIA - Tier 3 - 74 Kw (100 Hp) CAT 3.6 - Stage V - Tier 4F - 90 Kw (120 Hp)
